Plasmaloopalicious!

The magnetic loop containing hydrogen and nitrogen plasma evolves over 4 micro-seconds. Credit: Bellan & Stenson, 2012

The magnetic loop containing hydrogen and nitrogen plasma evolves over 4 micro-seconds. Credit: Bellan & Stenson, 2012

There’s no better method to understand how something works than to build it yourself. Although computer simulations can help you avoid blowing up a city block when trying to understand the physics behind a supernova, it’s sometimes just nice to physically model space phenomena in the lab.

So, two Caltech researchers have done just that in an attempt to understand a beautifully elegant, yet frightfully violent, solar phenomenon: coronal loops. These loops of magnetism and plasma dominate the lower corona and are particularly visible during periods of intense solar activity (like, now). Although they may look nice and decorative from a distance, these loops are wonderfully dynamic and are often the sites of some of the most energetic eruptions in our Solar System. Coronal loops spawn solar flares and solar flares can really mess with our hi-tech civilization.

A coronal loop as seen by NASA's Transition Region and Coronal Explorer (TRACE). Credit: NASA

A coronal loop as seen by NASA’s Transition Region and Coronal Explorer (TRACE). Credit: NASA

In an attempt to understand the large-scale dynamics of a coronal loop, Paul Bellan, professor of applied physics at Caltech, and graduate student Eve Stenson built a dinky “coronal loop” of their own (pictured top). Inside a vacuum chamber, the duo hooked up an electromagnet (to create the magnetic “loop”) and then injected hydrogen and nitrogen gas into the two “footpoints” of the loop. Then, they zapped the whole thing with a high-voltage current and voila! a plasma loop — a coronal loop analog — was born.

Although coronal loops on the sun can last hours or even days, this lab-made plasma loop lasted a fraction of a second. But by using a high-speed camera and color filters, the researchers were able to observe the rapid expansion of the magnetic loop and watch the plasma race from one footpoint to the other. Interestingly, the two types of plasma flowed in opposite directions, passing through each other.

The simulation was over in a flash, but they were able to deduce some of the physics behind their plasma loop: “One force expands the arch radius and so lengthens the loop while the other continuously injects plasma from both ends into the loop,” Bellan explained. “This latter force injects just the right amount of plasma to keep the density in the loop constant as it lengthens.” It is hoped that experiments like these will ultimately aid the development of space weather models — after all, it would be useful if we could deduce which coronal loops are ripe to erupt while others live out a quiescent existence.

It’s practical experiments like these that excite me. During my PhD research, my research group simulated steady-state coronal loops in the hope of explaining some of the characteristics of these fascinating solar structures. Of particular interest was to understand how magnetohydrodynamic waves interact with the plasma contained within the huge loops of magnetism. But all my research was based on lines of code to simulate our best ideas on the physical mechanisms at work inside these loops. Although modelling space phenomena is a critical component of science, it’s nice to compare results with experiments that aim to create analogs of large-scale phenomena.

The next test for Bellan and Stenson is to create two plasma loops inside their vacuum chamber to see how they interact. It would be awesome to see if they can initiate reconnection between the loops to see how the plasma contained within reacts. That is, after all, the fundamental trigger of explosive events on the Sun.

Read more in my Discovery News article: “Precursors to Solar Eruptions Created in the Lab

When Venus Transited the Sun

The Venus transit taken with my iPhone 3GS through a telescope eyepiece atop Mt. Wilson on June 5, 2012.

The Venus transit taken with my iPhone 3GS through a telescope eyepiece atop Mt. Wilson on June 5, 2012.

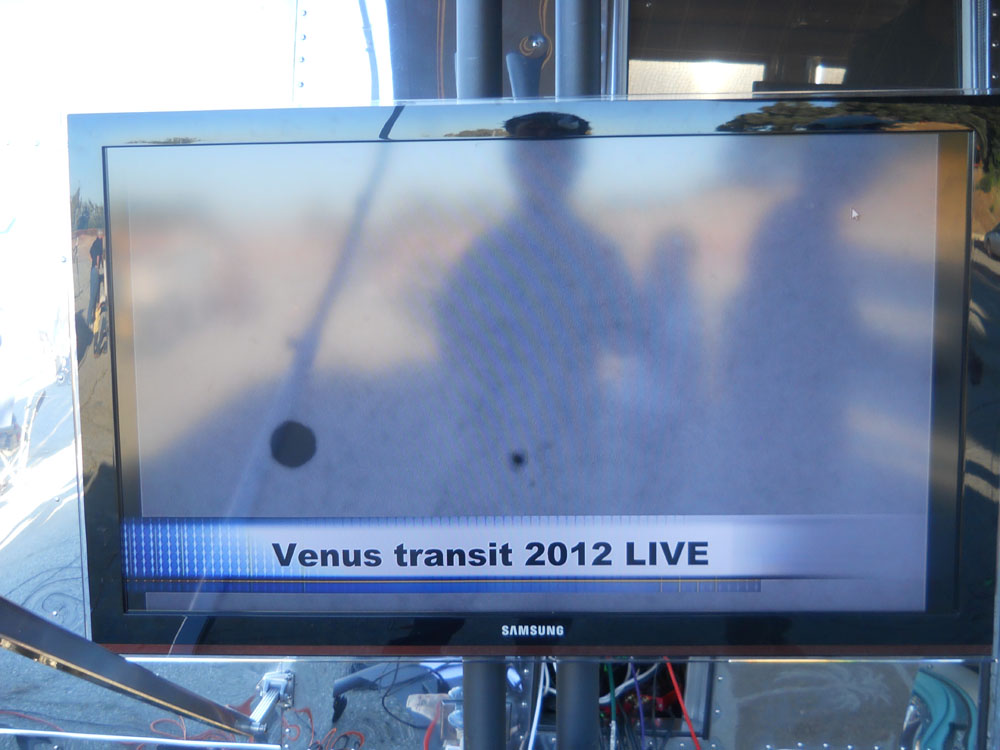

After the historic Venus transit and my involvement of the Astronomers Without Borders live webcast of the event from Mt. Wilson, I jetted off to Florida to give a talk at the 7×24 Exchange meeting in Orlando, so I had little time to post my transit photos on Astroengine.com. Now that my feet are (partially) back on the ground, I’ve found some time to upload them.

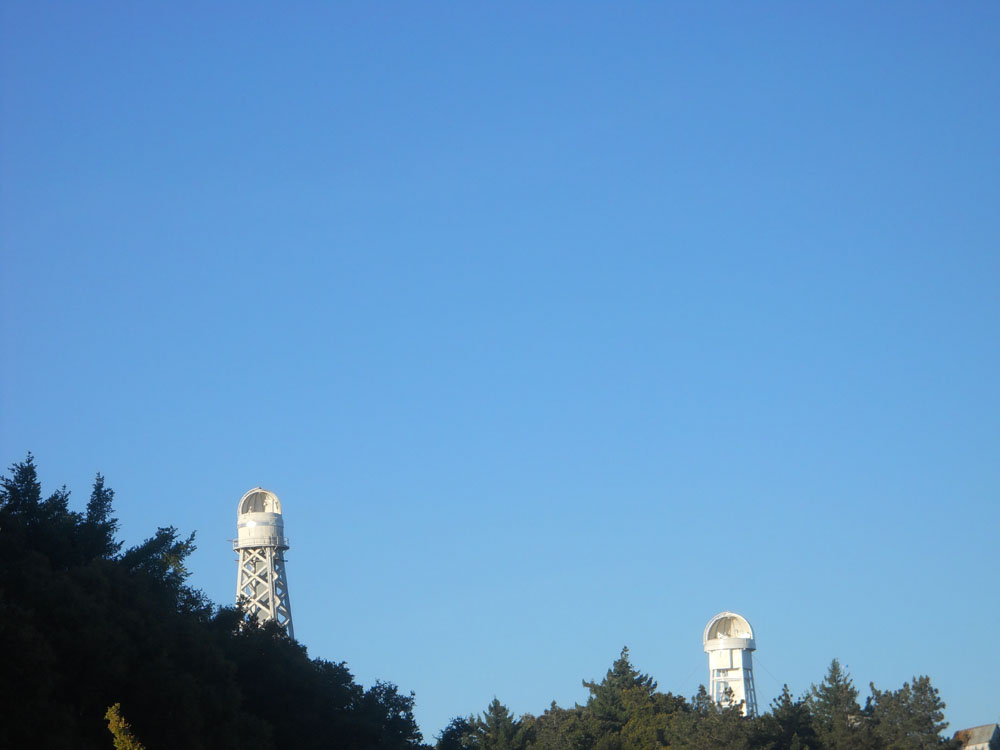

Interestingly, my favorite photos were taken using my trusty old iPhone 3GS through the eyepieces of random telescopes (pictured top), but here are some more from that awesome day.

For more, read my recent Discovery News articles based on the 2012 Venus transit:

What Do You See When SETI’s Allen Telescope Array Is Aimed At The Sun?

A comparison between an observation of the sun using the ATA's 2.75 GHz band (left) and SOHO's 195A filter. Both are near-simultaneous observations on Oct. 1, 2009 (Saint-Hilaire et al., 2011)

A comparison between an observation of the sun using the ATA's 2.75 GHz band (left) and SOHO's 195A filter. Both are near-simultaneous observations on Oct. 1, 2009 (Saint-Hilaire et al., 2011).

And no, “aliens” isn’t the answer.

The Allen Telescope Array (ATA), located near Hat Creek, California, isn’t only used by the SETI Institute to seek out signals from extraterrestrial civilizations. The 42 6.1-meter antennae form an interferometer that can be used for a variety of astronomical studies — in reality, this is the main focus of the project. SETI studies “piggyback” the active astronomical research, passively collecting data.

Due to the radio interferometer’s wide field of view, one surprising use of the ATA is solar astronomy — at radio frequencies. The ATA can be used to simultaneously observe the whole of the solar disk at a range of frequencies rarely studied. As outlined in a recent arXiv publication, a University of California, Berkeley, team of astronomers headed by Pascal Saint-Hilaire have carried out the first ATA solar study, producing images of the sun in a light we rarely see it in (shown above).

According to the paper, active regions were observed at radio and microwave frequencies, spotting the emissions associated with bremsstrahlung — electromagnetic radiation generated by accelerated charged particles caught in intense magnetic fields, a feature typical inside solar active regions. Also, coronal interactions, or gyroresonance, between solar plasma and plasma waves (propagating along magnetic field lines) was detected.

Combining the ATA’s wide field of view, range of frequencies and high resolution, it looks like the ATA is the only solar radiotelescope on the planet.

For more on this fascinating study, read “Allen Telescope Array Multi-Frequency Observations of the Sun,” Saint-Hilaire et al., 2011. arXiv:1111.4242v1 [astro-ph.SR]

Can Spicules Explain the Mysteries of Coronal Heating?

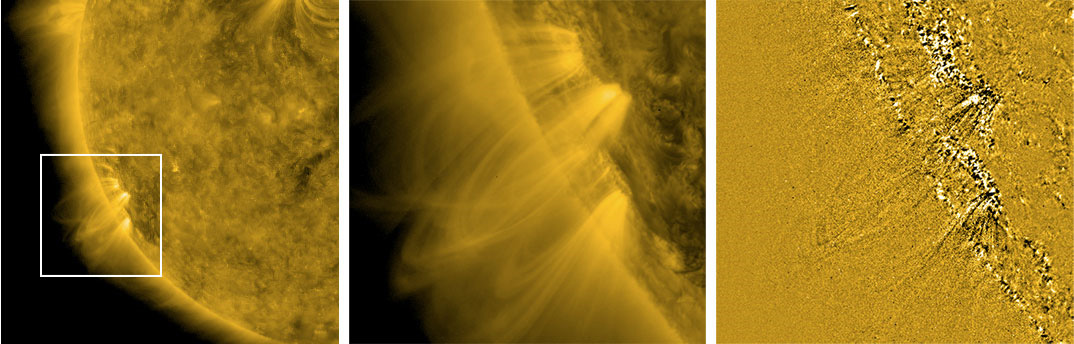

Solar spicules as imaged by NASA's Solar Dynamics Observatory (NASA)

Solar spicules as imaged by NASA's Solar Dynamics Observatory (NASA)

There’s one recurring question I’ve been asking for nearly a decade: Why is the Sun’s corona (its atmosphere) so hot?

When asking this out loud I inevitably get the sarcastic “um, because the Sun is… hot?” reply. Yes, the Sun is hot, really hot, but solar physicists have spent the last half-century trying to understand why the corona is millions of degrees hotter than the solar surface.

After all, if the air surrounding a light bulb was a couple of magnitudes hotter than the bulb’s surface, you’d want to know why that’s the case, right? At first glance, the solar atmosphere is breaking all kinds of thermodynamic laws.

The Sun is a strange beast and because of its magnetic dominance, energy travels through the solar body in rather unfamiliar ways. And today, a group of solar physicists have put forward a new theory as to where the coronal energy is coming from. But they’ve only been able to do this with help from NASA’s newest and most advanced solar telescope: the Solar Dynamics Observatory, or SDO.

Using the SDO’s high-definition cameras and imagery from the awesome Japanese Hinode solar observatory, features previously invisible to solar astronomers have been resolved. The features in question are known as “spicules.” These small-scale jets inject solar plasma from the solar surface into the lower corona, but until now they’ve been considered too cool to have any appreciable heating effect.

That was until a new type of hot, high-speed spicule was discovered.

“It’s a little jet, then it takes off,” solar physicist Scott McIntosh, of the National Center for Atmospheric Research’s High Altitude Observatory, told Discovery News’ Larry O’Hanlon. “What we basically find is that the connection is the heated blobs of plasma. It’s kind of a missing link that we’ve been looking for since the 1960s.”

These Type II spicules blast hot multi-million degree Kelvin plasma at speeds of 100 to 150 kilometers per second (62 to 93 miles per second) into the corona and then dissipate. What’s more, these aren’t isolated events, they’ve been observed all over the Sun. “This phenomenon is truly ubiquitous and populates the solar wind,” said McIntosh.

While this research provides more clarity on coronal dynamics, McIntosh is keen to point out that Type II spicules probably don’t tell the whole coronal heating story.

NASA’s coronal physics heavyweight James Klimchuk agrees. “It is very nice work, but it is absolutely not the final story on the origin of hot coronal plasma,” he said.

“Based on some simple calculations I have done, spicules account for only a small fraction of the hot plasma.”

Klimchuk favors coronal heating through magnetic stresses in the lower atmosphere generating small reconnection events. Right at the base of the corona, loops of magnetic flux channeling multi-million degree plasma high above the Sun’s chromosphere become stressed and eventually snap. These reconnection processes produce sub-resolution nanoflare events — akin to small explosions releasing energy into the solar plasma, heating it up.

Another heating mechanism — a mechanism I studied during my solar research days (.pdf) — is that of wave heating, when magnetohydrodynamic waves (I studied high-frequency Alfven waves, or ion cyclotron waves) interact with the lower corona, heating it up.

But which heating mechanism injects the most energy into the corona? For now, although there’s plenty of theorized processes (including these new transient Type II spicules), we don’t really know. We can only observe the solar corona from afar, so getting a true grasp on coronal dynamics is very hard. We really need a probe to dive deep into the solar atmosphere and take a measurement in-situ. Although the planned Solar Probe Plus will provide some answers, it may still be some time before we know why the corona is so hot.

But it is most likely that it’s not one coronal heating mechanism, but a combination of the above and, perhaps, a mechanism we haven’t uncovered yet.

For more on this fascinating research, check out Larry O’Hanlon’s Discovery News article “New Clue May Solve Solar Mystery.”

Compex Magnetic Eruption Witnessed by Solar Observatories

Solar Dynamics Observatory view of the solar disk shortly after eruption (NASA).

This morning, at 08:55 UT, NASA’s Solar Dynamics Observatory (SDO) detected a C3-class flare erupt inside a sunspot cluster. 100,000 kilometers away, deep within the solar atmosphere (the corona), an extended magnetic field filled with cool plasma forming a dark ribbon across the face of the sun (a feature known as a “filament”) erupted at the exact same time.

It seems very likely that both events were connected after a powerful shock wave produced by the flare destabilized the filament, causing the eruption.

A second solar observatory, the Solar and Heliospheric Observatory (SOHO), then spotted a huge coronal mass ejection (CME) blast into space, straight in the direction of Earth. Solar physicists have calculated that this magnetic bubble filled with energetic particles should hit Earth on August 3, so look out for some intense aurorae, a solar storm is on its way…

For more on this impressive solar eruption, read my Discovery News article, “Incoming! The Sun Unleashes CME at Earth

Borg Cube Spotted Near Solar Limb

There I was idly checking out SpaceWeather.com, seeing whether there was any sunspot activity going on… and then I saw this. At first, I assumed it was a highly symmetrical sunspot, but no! It was something far more sinister, but I didn’t recognize the hallmark signature. Neal Wiser saw it instantly and informed me via Twitter. A Borg Cube!

Of course it isn’t a Borg Cube (it’s just missing data), but this little Twitter joviality reminded me of the 2012/Planet X doomsday conspiracy theorists who seem to have the uncanny ability to read anything into, well, anything. Take the observations made by the Solar and Heliospheric Observatory (SOHO) which have been used over and over again as “proof” that UFOs and other scary things are orbiting the Sun, preparing for Armageddon… or the next Star Trek movie.

Oh look! SOHO has spotted a star! A comet! With wings!! Hold on? Isn’t that just an effect of saturated CCD pixels? No? Okay, it must be aliens then.

A Wide Angle View of Our Nearest Star

A comparison of solar minimum and solar maximum in EUV wavelengths (SOHO/NASA)

In case you were wondering why Astroengine has been a little quiet of late, this is why. I’ve been working with my Discovery Space colleagues to produce a “Wide Angle” all about the current solar minimum, space weather and the influence of the Sun on our planet.

It’s been fun to do, but it’s also been a steep learning curve to get up to speed with my new duties as producer for Discovery. Currently getting through a tonne of training, but I’ll get there. When organized, Astroengine will be back to full capacity, pumping out the best space news and opinion.

But for now, have an explore of Discovery Space and enjoy the current Wide Angle: Solar Minimum.
