Unmasking a Monster: A ‘Stunning Confirmation’ of Black Hole Theory

The Event Horizon Telescope’s image of M87* is so good that theorists thought it was too good to be true.

This feature was originally published on April 10 by the University of Waterloo as a part of their public release about Professor Avery Broderick’s theoretical work that led to the first ever image of a black hole. Written by Ian O’Neill, edited by media relations manager Chris Wilson-Smith.

When Avery Broderick initially saw the first image from the Event Horizon Telescope (EHT), he thought it was too good to be true. After playing a critical role in the project since its inception in 2005, Broderick was staring at his ultimate quarry: a picture-perfect observation of a supermassive black hole in another galaxy. Not only was this first image sweet reward for the dedicated global effort to make the impossible possible, it was a beautiful confirmation of Broderick’s predictions and the 100-year-old theories of gravity they are based upon.

“It turns out our predictions were stunningly close; we were spot-on,” said Broderick. “I think this is a stunning confirmation that we are at least on the right track of understanding how these objects work.”

For Broderick, a professor at University of Waterloo and the Perimeter Institute for Theoretical Physics, and a key member of the international Event Horizon Telescope Collaboration, this wasn’t just an image that proved his theoretical models correct, it was the beginning of a historic journey into the unknown, with potentially revolutionary consequences that will reverberate through science and society as a whole.

Making the Impossible Possible

On April 10, the global collaboration showcased the first image of the supermassive black hole in the core of the massive elliptical galaxy M87. The image shows a ghostly bright crescent surrounding a dark disk, a feature that surrounds the most gravitationally extreme region known: a black hole’s event horizon. This first image isn’t only proof that humanity now has the ability to probe right up to the edge of an event horizon, it’s a promise that future observations will help us better understand how supermassive black holes work, how they drive the evolution of their galactic hosts and, possibly, reveal new physics by finally unmasking the true nature of gravity itself.

To Broderick, who has always been fascinated by the undiscovered, it’s mysteries like these that give him the passion to understand how the universe works – an adventure that is an important part of the human story.

“Black holes are the most extreme environments in the universe, so naturally I was hooked for as long as I can remember,” he said. “Nowhere in the universe is there a more perfect laboratory for pushing back the boundaries of our knowledge of gravity’s nature. That makes black holes irresistible.”

Few scientists would debate the reality of black holes, but the first image of M87’s supermassive black hole is definitive proof that these monsters, and their associated event horizons, exist. “These things are real, along with all the consequences for physics,” he said.

In the years preceding this announcement, Broderick and his EHT colleagues developed simulations that modeled what the Earth-spanning virtual telescope might see. And, on comparing his models with the first EHT image, Broderick was amazed.

“That first image was so good that I thought it was a test – it had to be a trial run,” said Broderick, “It’s a beautiful ring shape that’s exactly the right size. In fact, it looks very similar to the images (of theoretical models) we included in proposals for the EHT.”

The ring shape Broderick describes is the bright emissions from the hot gasses immediately surrounding the colossal maw of a supermassive black hole’s event horizon. Located inside the massive elliptical galaxy M87 in the constellation of Virgo, this gargantuan object has a mass of six-and-a-half-billion Suns and measures nearly half a light-day across. This may sound big, but because it’s located 55-million light-years away, it’s far too distant for any single telescope to photograph.

The EHT, however, is a network of many radio telescopes around the world, from the Atacama Desert to the South Pole. By working together – via a method known as very long-baseline interferometry – they create a virtual observatory as wide as our planet and, after two decades of development, the international collaboration has accomplished the impossible by resolving the event horizon around M87’s supermassive black hole.

“This is a project that has a wide breadth of collaboration, geographically – you can’t build an Earth-sized telescope without an Earth-sized collaboration! – but also in expertise, from the engineers who build these advanced telescopes, to the astronomers who work on the day-to-day and the theorists who inspire their observations,” said Broderick.

A Stunning Confirmation

The event horizon is a region surrounding a black hole where the known physics of our universe ends abruptly. Nothing, not even light, can escape a black hole’s incredible gravity, with the event horizon being the ultimate point of no return. What lies beyond the event horizon is open to debate, but one thing is for certain: if you fall inside, you’re not getting out.

Over a century ago, Albert Einstein formulated his theory of general relativity, a theoretical framework that underpins how our universe works, including how event horizons should look. Black holes are the embodiment of general relativity at its most extreme, and event horizons are a manifestation of where space-time itself caves in on itself.

“Event horizons are the end of the safe space of the universe,” said Broderick, “they should have ‘mind the gap’ or ‘mind the horizon’ signs around them!”

Physics has some key unresolved problems that may be answered by the EHT, one of which is the nature of gravity itself, added Broderick. Simply put, gravity doesn’t jibe with our current understanding of other fundamental forces and particles that underpin all matter in the universe. By stress-testing Einstein’s theories right at the edge of a black hole’s event horizon, the EHT will provide physicists with the ultimate laboratory in which to better understand gravity, the force that drives the formation of stars, planets, and the evolution of our universe.

Once we truly understand this fundamental force, the impact could be revolutionary, said Broderick. “Gravity is the key scientific problem facing physics today, and no one fully understands the ramifications of what understanding gravity fully are going to be.”

On an astronomical level, supermassive black holes are intrinsically linked with the evolution of the galaxies they inhabit, but how they form and evolve together is another outstanding mystery.

Supermassive black holes are also the purveyors of creation and doom – they have the power to kick-start star formation as well as preventing stars from forming at all – a dichotomy that astronomers hope to use the EHT to understand.

“These incredibly massive things lie at the centers of galaxies and rule their fates,” said Broderick. “Supermassive black holes are the engines behind active galactic nuclei and distant quasars, the most energetic objects known. Now we’re seeing what they look like, up close, for the first time.”

All galaxies are thought to contain a supermassive black hole, including our own galaxy, the Milky Way. Called Sagittarius A* (or Sgr A*), our supermassive black hole is 2,000 times less massive than the one in M87, but it’s 2,000 times closer – at a distance of 25,000 light-years. This means that the EHT can image both Sgr A* and M87 as they appear approximately the same size in the sky, a situation that is an incredible stroke of luck.

“If you had to choose two sources, these two would be it,” said Broderick. Whereas M87’s supermassive black hole is one of the biggest known and a “real mover and shaker,” Sgr A* is much less massive and considered to be an “everyman of black holes,” he said.

“We had to start somewhere. M87 represents the first end-to-end exercise of the entire EHT collaboration – from data taking to data interpretation,” said Broderick. “The next exercise will happen considerably faster. This is only the beginning.”

Voyage of Discovery

As the scientific benefits of observing supermassive black holes are becoming clear, Broderick pointed out that the impact on society could also be seismic.

“I would hope that an image like this will galvanize a sense of exploration; an exploration of the mind and that of the universe,” he said. “If we can excite people, inspire them to embark on a voyage of discovery in this new EHT era of observational black hole physics, I can only imagine that it will have profound consequences for humanity moving forward.

“I feel incredibly privileged to be a part of this story of exploration – the human story of understanding the universe we inhabit and using that understanding to improve our lives.”

Read more: “First image of black hole captured,” Univ. of Waterloo, by Ian O’Neill

This Is the First Image of a Black Hole

The image is the result of a global collaboration and human ingenuity — a discovery that will change our perception of the universe forever

[EHT Collaboration]

Lurking in the massive elliptical galaxy Messier 87 is a monster. It’s a supermassive black hole, 6.5 billion times the mass of our Sun, crammed inside an event horizon measuring half a light-day across. It’s very far away, over 50 million light-years, but, today, astronomers of the Event Horizon Telescope (EHT) have delivered on a promise that has been two decades in the making: They’ve recorded the first ever image of the bright ring of emissions immediately surrounding M87’s event horizon, the point at which our universe ends and only mystery lies beyond.

The magnitude of this achievement is historic. Not only does this single image prove that black holes actually exist, it is a stunning confirmation of the predictions of general relativity at its most extreme. If this theoretical framework acted somehow differently at the event horizon, the image wouldn’t look as it does. The reality is that general relativity has precisely predicted the size, shape and form of this distant object to an incredible degree of precision.

In the run-up to today’s announcement, I had the incredible fortune to write the University of Waterloo’s press release and feature about the EHT with Avery Broderick, a professor at Waterloo and the Perimeter Institute for Theoretical Physics, and a key member of the international EHT Collaboration. You can read the releases here:

Unmasking a Monster (feature)
First Image of Black Hole Captured (news)

I especially enjoyed discussing Avery’s personal excitement and passion for this project: “I would hope that an image like this will galvanize a sense of exploration; an exploration of the mind and that of the universe,” he said. “If we can excite people, inspire them to embark on a voyage of discovery in this new EHT era of observational black hole physics, I can only imagine that it will have profound consequences for humanity moving forward.”

Like the discovery of the Higgs boson and the detection of gravitational waves, the first image of a black hole will have as much of an impact on society as it will on science and, like Avery, I hope it inspires the next generation of scientists, driving our passion for exploration and understanding how our universe works.

Wow, what a morning.

Watch the NSF’s recording of today’s live feed here:

Will the EHT’s First Black Hole Image Look Like Interstellar’s “Gargantua”?

Not quite.

The supermassive black hole “Gargantua” from the movie “Interstellar.” [Paramount Pictures]

UPDATE: The EHT’s first image has been released! See: This Is the First Image of a Black Hole

Tomorrow, on April 10, the Event Horizon Telescope (EHT) will make an international announcement about a “groundbreaking result” from the global collaboration. Further details as to what this result actually is are under wraps, but as the EHT’s mission is to image a supermassive black hole for the first time, the expectation is that it will be a historic day for humanity. We may actually see what a black hole — more precisely, a black hole’s event horizon — really looks like.

But we already know what a black hole looks like, right? There have been countless science fiction imaginings of black holes over the years and, most recently, the Matthew McConaughey movie “Interstellar” depicted what is touted as the most scientifically-accurate sci-fi black hole ever.

Diving into a black hole has never been so much fun [Paramount Pictures]

Interstellar’s black hole, called “Gargantua,” is a sight to behold and many physicists and CGI experts went out of their way to base that thing on the physics that is predicted to drive these monsters. Physics heavyweight Kip Thorne even advised on how this rotating black hole — a supermassive one at that — should look and behave, based on earlier work by Jean-Pierre Luminet (ScienceAlert has a great article about this).

Back to reality, the EHT may well be presenting its own “Gargantua moment” tomorrow when the first results are presented. The EHT is a global network of radio telescopes all dedicated to probing the final frontier of general relativity. Black holes are the most extreme gravitational objects in the universe and the supermassive monsters that lurk in the cores of most galaxies are true behemoths.

The EHT currently has two targets it hopes to image, the supermassive black hole in the core of our galaxy, the Milky Way, and one inside the massive elliptical galaxy, M87. With a mass of four million Suns, our galaxy’s supermassive black hole is called Sagittarius A* (Sgr A* for short) and is located approximately 25,000 light-years away. But M87’s monster dwarfs our comparatively diminutive specimen — it’s a super-heavyweight among supermassive black holes, with a mass of a whopping 6.5 billion Suns.

In a wonderful stroke of cosmic luck, although M87 is 50 million light-years away, some 2,000 times further away than Sgr A*, it’s also approximately 2,000 times more massive. This means that both Sgr A* and M87 will appear approximately the same size in the sky to the EHT. They are also two wonderful targets to study, as both are very different in nature.

Now, back to Gargantua. As this CGI beauty is based on real physics theory, and assuming the first EHT image doesn’t throw the fidelity of general relativity into doubt, both Gargantua and the two EHT targets should, basically, look the same. Sure, there’s going to be differences based on mass, jets of material, size of accretion disks and other details, but will the EHT first image bear any resemblance to the Interstellar rendering?

Short answer: no, it should look something like this:

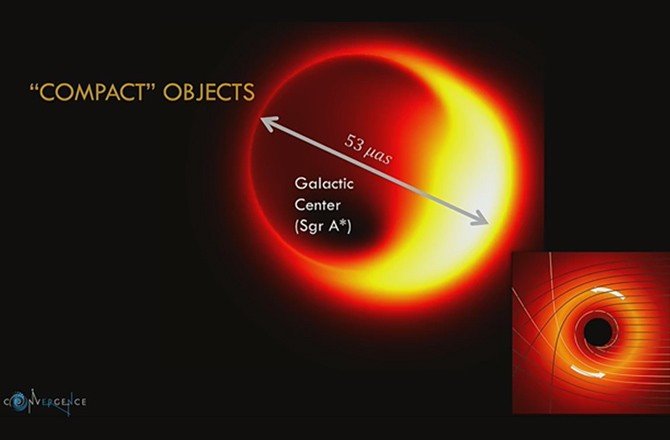

Screen capture from Avery Broderick’s 2015 Convergence presentation on the theoretical efforts behind the EHT. Broderick is a professor at the Perimeter Institute and University of Waterloo, and a member of the EHT collaboration. More on this here.

Long answer: It’s all about wavelength. Over to gravitational wave astrophysicist Dr. Chiara Mingarelli, of the Flatiron Center for Computational Astrophysics (CCA), who’s tweet inspired this article:

Gargantua was created with human vision in mind. Our eyes are sensitive to visual wavelengths, from 380 nanometers (violet) to 740 nanometers (red), and movies are very much based on what humans can see (I hear infrared movies are rubbish). But the EHT cares little for nanometer wavelengths — the EHT is all about seeing the universe in millimeter wavelengths, which means it can see things our eyes can’t see. It is a network of radio telescopes all working together as one planet-wide virtual telescope via a clever method known as very long baseline interferometry. By viewing a black hole target at these wavelengths, astronomers have the ability to see straight through the accretion disk, dusty torus (if it has one), jets of material and other nonsense floating around the black hole.

Here’s a few frames from the simulation Dr. Mingarelli is referring to above, wavelength increasing from nanometers to millimeters, left to right:

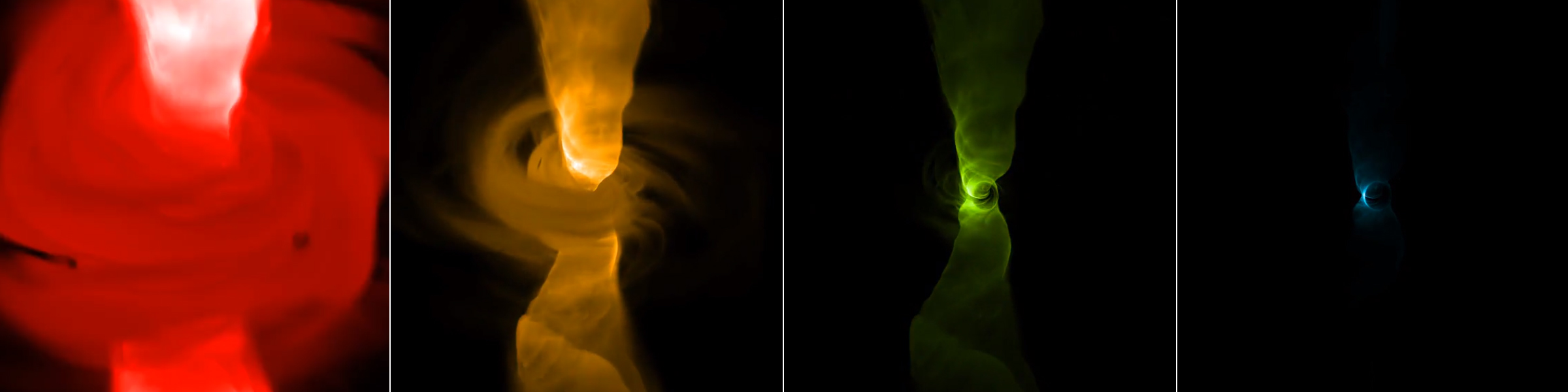

Frames from the black hole simulation. As the wavelength increases from left to right, features such as the black hole’s accretion disk becomes transparent, allowing the EHT to see emissions from just outside the edge of the event horizon — seen here as a small silhouetted disk (far right). [Credit: Chi-Kwan Chan]

The EHT can see right up to the innermost limit, just before nothing, not even light, can escape the gravitational grasp of the event horizon. Any hot plasma or dust that would otherwise obscure our view of the horizon are transparent at wavelengths more than one millimeter, so we can see the radiation emitted by the hot, turbulent material that is being tortured by the extreme environment right at the horizon.

Gargantua is a glorious rendering of what a supermassive black hole might look like if we could take a trip with Matthew McConaughey and co. (give or take some CGI sparkle for dramatic effect). What the EHT sees is the shadow, or the silhouette, of a black hole’s event horizon — that will likely be either perfectly circular or slightly oblate, if general relativity holds. That’s not to say that Gargantua doesn’t look like Sgr. A* or M87 in visible wavelengths as Hollywood intended, it’s just that the EHT will lack most of Gargantua’s CGI.

So, I’ll be waking up far earlier tomorrow to watch the EHT announcement and keeping my fingers crossed that we’ll finally get to see what an event horizon really looks like.

Primordial Black Holes Probably Don’t Pack a Dark Matter Punch

Waiting for the Andromeda galaxy’s stars to twinkle may have extinguished hope for tiny black holes being a significant dark matter candidate

Should a black hole drift in front of a star, it could trigger a microlensing event, so astronomers set out to estimate the number of primordial black holes in Andromeda [Kavli IPMU]

Using the Andromeda galaxy as a huge detector, astronomers have taken a stab at seeing the unseeable — possibly disproving a hypothesis first put forward by the late Stephen Hawking 45 years ago.

According to Hawking’s work, the universe should be filled with black holes that were formed at the beginning of time, when the universe was a chaotic soup of energy just after the Big Bang. Known as “primordial” black holes, these ancient objects are hypothesized to invisibly occupy modern galaxies, including our own, boosting their dark matter mass.

These black holes aren’t the supermassive monsters that lurk in the centers of most galaxies; they’re not even stellar-mass black holes, formed after massive stars go supernova. Primordial black holes are much smaller than that, having leaked most of their mass via Hawking radiation since their formation 13.8 billion years ago. They should, however, still have powerful gravitational effects on the space surrounding them and, in new research published last week in the journal Nature Astronomy, an international team of researchers have leveraged these hypothetical black holes’ space-time-warping powers to reveal their presence.

Or not, as it turns out.

Central to this study is the effect of microlensing. This astronomical method relies on an object passing between us and a distant star. It has been used to great effect when detecting distant exoplanets, or rogue brown dwarfs wandering through interstellar space. Should one of these objects drift directly in front of a star, its gravitational field can create a magnification effect that briefly brightens the star’s light. The gravitational field creates a natural “lens” out of space-time itself, a prediction that arises from Einstein’s general relativity.

The effect of gravitational microlensing on a star in the Andromeda galaxy should a primordial black hole drift in front [Kavli IPMU]

It stands to reason that even though primordial black holes don’t generate any light themselves, if you stare at at entire galaxy for long enough, you should see a lot of twinkling stars, or microlensing events caused by the hypothetical swarm of primordial black holes the galaxy should contain. Count the number of events, and you can take a statistical stab the total number of primordial black holes in a galaxy like Andromeda, thereby providing an estimate as to how much of the universe’s missing dark matter mass is made up from these objects.

Using the power of the Subaru telescope in Hawaii, the researchers put this to the test, capturing 190 consecutive images of Andromeda over seven hours during one night with the observatory’s Hyper Suprime-Cam digital camera. If Hawking’s theory held, the telescope should have recorded approximately 1,000 microlensing events caused by primordial black holes with a mass of less than our moon drifting in front of Andromeda’s stars. Alas, only one microlensing event was detected that night. From this observation campaign alone, the researchers estimate that primordial black holes make up no more than 0.1 percent of the total dark matter mass in our universe.

Although this elegant study doesn’t necessarily disprove the existence of primordial black holes — one single event is interesting, but not compelling — it does put a wrench in the idea that they dominate the mass holed up in dark matter. So, the quest to understand the nature of dark matter grinds on and, with the help of this study, astronomers have now narrowed down the search by removing primordial black holes from the dark matter equation.

Psychedelic Simulation Showcases the Ferocious Power of a Solar Flare

Scientists are closing in on a better understanding about how these magnetic eruptions evolve

[Mark Cheung, Lockheed Martin, and Matthias Rempel, NCAR]

For the first time, scientists have created a computer model that can simulate the evolution of a solar flare, from thousands of miles below the photosphere to the eruption itself in the lower corona — the sun’s multimillion degree atmosphere. And the results are not only scientifically impressive, the visualization is gorgeous.

I’ve always had a fascination with the sun — from how our nearest star generates its energy via fusion reactions in its core, to how the tumultuous streams of energetic plasma slams into our planet’s magnetosphere, igniting spectacular aurorae. Much of my interest, however, has focused on the lower corona; a region where the intense magnetic field emerges from the solar interior and reaches into space. With these magnetic fields comes a huge release of hot plasma that is channeled by the magnetism to form beautiful coronal loops. Intense regions of magnetism can accumulate in violently-churning “active regions,” creating sunspots and explosive events — triggered by large-scale magnetic reconnection — such as flares and coronal mass ejections (or CMEs). This is truly a mysterious place and solar physicists have tried to understand its underlying dynamics for decades.

The eruption of an X-class solar flare in the sun’s multimillion degree corona [NASA/SDO]

Now, with increasingly-sophisticated solar observatories (such as NASA’s Solar Dynamics Observatory), we are getting an ever more detailed look at what’s going on inside the sun’s deep atmosphere and, with improvements of theoretical models and increases in computer processing power, simulations of the corona are looking more and more like the real thing. And this simulation, detailed in the journal Nature Astronomyis truly astonishing.

In the research, led by researchers at the National Center for Atmospheric Research (NCAR) and the Lockheed Martin Solar and Astrophysics Laboratory, the evolution of a solar flare has been modeled. This simulation goes beyond previous efforts as it is more realistic and creates a more complete picture of the range of emissions that can be generated when a solar flare is unleashed.

One of the biggest questions hanging over solar (and indeed, stellar) physics is how the sun (and other stars) heat the corona. As we all know, the sun is very hot but its corona is too hot; the photosphere is a few thousand degrees, whereas, only just above it, the coronal plasma skyrockets to millions of degrees, generating powerful radiation beyond what the human eye can see, such as extreme-ultraviolet and X-rays. Basic thermodynamics says that this shouldn’t be possible — this situation is analogous to finding the air surrounding a light bulb is hotter than the bulb’s glass. But what our sun has that a light bulb does not is a powerful magnetic field that dictates the size, shape, temperature and dynamics of the plasma our sun is blasting into space. (If you want some light reading on the subject, you can read my PhD thesis on the topic.)

“This work allows us to provide an explanation for why flares look like the way they do, not just at a single wavelength, but in visible wavelengths, in ultraviolet and extreme ultraviolet wavelengths, and in X-rays. We are explaining the many colors of solar flares.”

Mark Cheung, staff physicist at Lockheed Martin Solar and Astrophysics Laboratory.

The basis of this new simulation, however, investigates another mystery: How and why do solar flares erupt and evolve? It looks like the research team might be on the right track.

When high-energy particles from the sun impact our atmosphere, vast light shows called auroras can be generated during the geomagnetic storm, as shown in this view from the International Space Station [NASA]

Inspired by a powerful flare that was observed in the corona in March 2014, the researchers provided their magnetohydrodynamic model with an approximation of the conditions that were observed at the time. The magnetic conditions surrounding the active region were primed to generate a powerful X-class flare (the most powerful type of solar flare) and several less powerful (but no less significant) M-class flares. So, rather than forcing their simulation to generate flares, they re-enacted the conditions of the sun that were observed and just let their simulation run to create its own flares.

“Our model was able to capture the entire process, from the buildup of energy to emergence at the surface to rising into the corona, energizing the corona, and then getting to the point when the energy is released in a solar flare,” said NCAR scientist Matthias Rempel in a statement. “This was a stand-alone simulation that was inspired by observed data.

“The next step is to directly input observed data into the model and let it drive what’s happening. It’s an important way to validate the model, and the model can also help us better understand what it is we’re observing on the sun.”

Solar flares, CMEs and even the solar wind can have huge impacts on our technological society. The X-rays blasting from the sun’s atmosphere millions of miles away can have dramatic impacts on the Earth’s ionosphere (impacting communications) and can irradiate unprotected astronauts in space, for example. CMEs can be launched from the corona and arrive at Earth orbit in a matter of hours or days, triggering geomagnetic storms that can impact entire power grids. We’re not just talking a few glitches on your cellphone here; satellites can be knocked out, power supplies neutralized and global communications networks interrupted. It’s simulations like these, which aim to get to the bottom of how these solar storms are initiated, that can help us better prepare for our sun’s next big temper tantrum.

For more on this research, watch this video:

This Weird Star System Is Flipping Awesome

The binary system observed by ALMA isn’t wonky, it’s the first example of a polar protoplanetary disk

Artwork of the system HD 98000. This is a binary star comprising two sun-like components, surrounded by a thick disk of material. What’s different about this system is that the plane of the stars’ orbits is inclined at almost 90 degrees to the plane of the disk. Here is a view from the surface of an imagined planet orbiting in the inner edge of the disk [University of Warwick/Mark Garlick].

Some star systems simply don’t like conforming to cosmic norms. Take HD 98000, for example: It’s a binary system consisting of two sun-like stars and it also sports a beautiful protoplanetary disk of gas and dust. So far, so good; sounds pretty “normal” to me. But that’s only part of the story.

When a star is born, it will form a disk of dust and gas — basically the leftovers of the molecular cloud the star itself formed in — creating an environment in which planets can accrete and evolve. Around a single star (like our solar system) the protoplanetary disk is fairly well behaved and will create a relatively flat disk around the star’s spin axis. For the solar system, this flat disk would have formed close to the plane of the ecliptic, an imaginary flat surface that projects out from the sun’s equator where all the planets, more or less, occupy. There are “wonky” exceptions to this rule (as, let’s face it, cosmic rules are there to be broken), but the textbook descriptions of a star system in its infancy will usually include a single star and a flat, boring disk of swirling material primed to build planets.

Cue HD 98000, a star system that has flipped this textbook description on its head, literally. As a binary, this is very different to what we’re used to with our single, lonely star. Binary stars are very common throughout the galaxy, but HD 98000 has a little something extra that made astronomers take special note. As observed by the Atacama Large Millimeter/sub-millimeter Array (ALMA), its protoplanetary disk doesn’t occupy the same plane as the binary orbit; it’s been flipped by 90 degrees over the orbital plane of the binary pair. Although such systems have been long believed to be theoretically possible, this is the first example that has been found.

“Discs rich in gas and dust are seen around nearly all young stars, and we know that at least a third of the ones orbiting single stars form planets,” said Grant M. Kennedy, of the University of Warwick and lead author of the study published today in the journal Nature Astronomy, in a statement. “Some of these planets end up being misaligned with the spin of the star, so we’ve been wondering whether a similar thing might be possible for circumbinary planets. A quirk of the dynamics means that a so-called polar misalignment should be possible, but until now we had no evidence of misaligned discs in which these planets might form.”

Artwork of the system HD 98000. This is a binary star comprising two sun-like components, surrounded by a thick disc of material [University of Warwick/Mark Garlick]

This star system makes for some rather interesting visuals, as shown in the artist’s impression at the top of the page. Should there be a planetary body orbiting the stars on the inner edge of the disk, an observer would be met with a dramatic pillar of gas and dust towering into space with the two stars either side of it in the distance. As they orbit one another, the planetary observer would see them switch positions to either side of the pillar. It goes without saying that any planet orbiting two stars would have very different seasons than Earth. It will even have two different shadows cast across the surface.

“We used to think other solar systems would form just like ours, with the planets all orbiting in the same direction around a single sun,” added co-author Daniel Price of Monash University. “But with the new images we see a swirling disc of gas and dust orbiting around two stars. It was quite surprising to also find that that disc orbits at right angles to the orbit of the two stars.”

Interestingly, the researchers note that there are another two stars orbiting beyond the disk, meaning that our hypothetical observer would have four suns of different brightnesses in the sky.

The most exciting thing to come out of this study, however, is that ALMA has detected signatures that hint at dust growth in the disk, meaning that material is in the process of clumping together. Planetary formation theories suggest that accreting dust will go on to form small asteroids and planetoids, creating a fertile enviornment in which planets can evolve.

“We take this to mean planet formation can at least get started in these polar circumbinary discs,” said Kennedy. “If the rest of the planet formation process can happen, there might be a whole population of misaligned circumbinary planets that we have yet to discover, and things like weird seasonal variations to consider.”

What was that I was saying about “cosmic norms”? When it comes to star system formation, there doesn’t appear to be any.

Reference: https://warwick.ac.uk/newsandevents/pressreleases/double_star_system
Paper:
https://www.nature.com/articles/s41550-018-0667-x

How Is Stardust Created? #TRIUMFology

I worked on TRIUMF’s Five-Year Plan (2020-2025) last year, so Astroengine is featuring a few physicsy articles that were included in the document to tell the center’s story

When (neutron) stars collide… [NASA/CXC/M.WEISS]

Last year, I had the honor to help write TRIUMF’s Five-Year Plan for 2020-2025. TRIUMF is Canada’s particle accelerator center, located next to the University of British Columbia’s campus in Vancouver, and it tackles some of the biggest problems facing physics today.

Every five years, research facilities in Canada prepare comprehensive documents outlining their strategies for the next five. In this case, TRIUMF asked me to join their writer team and I was specifically tasked with collaborating with TRIUMF’s management to develop and write the Implementation Plan (PDF) — basically an expanded version of the Strategic Plan (PDF) — detailing the key initiatives the center will carry out between 2020 and 2025.

As the location of the world’s largest and oldest operational cyclotron, the center is a multi-faceted physics lab with hundreds of scientists and engineers working on everything from understanding the origins of matter to developing radiopharmaceuticals to treat late-stage cancers. I only had a vague understanding about the scope of TRIUMF’s work before last year, but, as the months progressed after visiting the center in April 2018, I was treated to an unparalleled learning experience that was as dizzying as it was rewarding.

As a science communicator, I wanted to understand what makes TRIUMF “tick,” so I decided to speak to as many TRIUMF scientists, engineers, collaborators, and managers as possible. During my interviews, I was excited and humbled to hear stories of science breakthroughs, personal achievements and mind-bending physics concepts, so I included a series of miniature articles to complement the Implementation Plan’s text. As the Five-Year Plan is a public document (you can download the whole Plan here, in English and French), I’ve been given permission by TRIUMF to re-publish these articles on Astroengine.

“Beyond Multimessenger Astronomy”

Background: To kick off the series, we’ll begin with nuclear science. Specifically, how astrophysical processes create heavy elements and how TRIUMF studies the formation of radioisotopes in the wake of neutron star collisions.

After the 2017 LIGO detection of gravitational waves caused by the collision of two neutron stars (get the details here), and the near-simultaneous detection of a gamma-ray burst from the same location, scientists heralded a new era for astronomy — nicknamed “multimessenger astronomy,” where gravitational wave and electromagnetic signals measured at the same time from the same event can create a new understanding of astrophysical processes. In this case, as it was confirmed to be a neutron star merger — an event that is theorized to generate r-process elements — spectroscopic analysis of the GRB’s afterglow confirmed that, yes, neutron star collisions do indeed create the neutron-rich breeding ground for heavy elements (like gold and platinum). Although multimessenger astronomy may be a new thing, TRIUMF has been testing these theories in the laboratory environment for years, using rare isotope beams colliding into targets that mimic the nuclear processes that produce the heavy elements in our universe. This process is known as nucleogenesis, and it’s how our cosmos forges the elements that underpin stardust, the stuff that makes the planets, stars, and the building blocks of life.

For this mini-article, I had a fascinating chat with Dr. Iris Dillmann, a nuclear physics research scientist at TRIUMF. I’ve lightly edited the text for context and clarity. The original article can be found on page 22 of the Implementation Plan (PDF).

The GRIFFIN experiment is part of the ISAC facility that uses rare-isotope beams to carry out physics experiments [TRIUMF]

The article: TRIUMF’s investigations into neutron-rich isotopes were well-established before the advent of multi-messenger astronomy. “It was a cherry on top of the cake to get this confirmation, but the experimental program was already going on,” said Dillmann.

“What we do is multi-messenger nuclear physics; we are not looking directly into stars. TRIUMF is doing experiments here on Earth.”

Whereas the combination of gravitational waves and electromagnetic radiation from astrophysical events gives rise to a new era of multi-messenger astronomy, TRIUMF’s Isotope Separator and Accelerator (ISAC) facilitates the investigation of heavy isotopes through an array of nuclear physics experiments all under one roof that can illuminate the characteristics of isotopes that have been identified in neutron star mergers.

“For example, astronomers can identify one interesting isotope and realize that they need more experimental information on that one isotope,” she said. “We then have the capability to go through the different setups and, say, measure the mass of the isotope with the TRIUMF Ion Trap for Atomic and Nuclear Science (TITAN) experiment’s Penning trap.”

From there, Dillmann added, the Gamma-Ray Infrastructure For Fundamental Investigations of Nuclei (GRIFFIN) experiment can use decay spectroscopy to investigate the half-lives of rare isotope beams and their underlying nuclear structure. Other nuclear properties such as moments and charge radii can be measured using laser spectroscopy. TRIUMF scientists can also directly measure the reaction cross-sections of explosive hydrogen and helium burning in star explosions with the Detector of Recoils And Gammas Of Nuclear reactions experiment (DRAGON) and the TRIUMF UK Detector Array (TUDA).

With ISAC, all these measurements are carried out in one place, where teams from each experiment work side by side to solve problems quickly and collaborate effectively. “We have the setups in the hall to investigate an isotope from different perspectives to try to get a complete picture just from one department — the nuclear physics department,” said Dillmann.

*****

Why “TRIUMFology”?

…because I have a “PhD” in TRIUMFology! Not sure if I can include it in my resume, but I love the honor all the same. Thanks Team TRIUMF!

Wonky Star Systems May Be Born That Way

A nearby baby star has been discovered with a warped protoplanetary disk — a feature that may reveal the true nature of the solar system’s planetary misalignments

[RIKEN]

Textbook descriptions of our solar system often give the impression that all the planets orbit the sun in well-behaved near-circular orbits. Sure, there’s a few anomalies, but, in general, we’re led to believe that everything in our interplanetary neighborhood travels around the sun around a flat orbital plane. This, however, isn’t exactly accurate.

Pluto, for example, has an orbit around the sun that is tilted by over 17 degrees out of the plane of the ecliptic (an imaginary flat plane around which the Earth orbits the sun). Mercury has an inclination of seven degrees. Even Venus likes to misbehave and has an orbital inclination of over three degrees. If all the material that built the planets originated from the same protoplanetary disk that was — as all the artist’s impressions would have us believe — flat, what knocked all the planet’s out of alignment with the ecliptic?

Until now, it was assumed that, during the early epoch of our solar system’s planet-forming days, dynamic chaos ruled. Planets jostled for gravitational dominance, Jupiter bullied smaller worlds into other orbits (possibly chucking one or two unfortunates into deep space), and gravitational instabilities threw the rest into disorderly orbital paths. Other star systems also exhibit this orbital disorder, so perhaps it’s just an orbital consequence of a star system’s growing pains.

But there might be another contribution to the chaos: perhaps wonky star systems were just born that way.

Cue a recent observation campaign of the nearby baby star L1527. Located 450 light-years away in the direction of the Taurus Molecular Cloud, L1527 is a protostar embedded in a thick protoplanetry disk. Using the Atacama Large Millimeter/submillimeter Array (ALMA), in Chile, astronomers of the RIKEN Cluster for Pioneering Research (CPR) and Chiba University in Japan discovered that the L1527 disk is actually two disks morphed into one — both of which are out of alignment with one another. Imagine a vinyl record that has been left on a heater and you wouldn’t be far off visualizing what this baby star system looks like.

The RIKEN study, published on Jan. 1 in Nature, suggests that this warping may have been caused by jets of material emanating from the star’s birth, kicking planet-forming material into this warped configuration and, should this configuration remain stable, could result in planets with orbital planes that are significantly out of alignment.

“This observation shows that it is conceivable that the misalignment of planetary orbits can be caused by a warp structure formed in the earliest stages of planetary formation,” said team leader Nami Sakai in a RIKEN press release. “We will have to investigate more systems to find out if this is a common phenomenon or not.”

It’s interesting to think that if this protoplanetary disk warping is due to the mechanics behind the formation of the star itself, we might be able to look at mature star systems to see the ancient fingerprint of a star’s earliest outbursts or, possibly, its initial magnetic environment.

It’s possible “that irregularities in the flow of gas and dust in the protostellar cloud are still preserved and manifest themselves as the warped disk,” added Sakai. “A second possibility is that the magnetic field of the protostar is in a different plane from the rotational plane of the disk, and that the inner disk is being pulled into a different plane from the rest of the disk by the magnetic field.”

Though orbital chaos undoubtedly contributed to how our solar system looks today, with help of this research, we may be also getting a glimpse of how warped our sun’s protoplanetry disk may have been before the planets even formed.

Voyager 2 Has Left the (Interplanetary) Building

The NASA probe was launched in 1977 and has now joined its twin, Voyager 1, to begin a new chapter of interstellar discovery

Both Voyager 1 and 2 are sampling particles from the interstellar medium, becoming humanity’s furthest-flung missions into deep space [NASA/JPL-Caltech]

Carolyn Porco, planetary scientist and lead of the NASA Cassini mission imaging team, probably said it best:

Voyager 1 made us an interstellar species; 6 yrs later, Voyager 2 makes it look easy. While these are historic, soul-stirring achievements, I am most happy right now that Ed Stone, the best Project Scientist who ever lived, lived to see this moment.

via Twitter

It can be easy to lump today’s announcement about Voyager 2 entering interstellar space as “simply” another magnificent science achievement for NASA — but that would be too narrow; the Voyager spacecraft have become so much more. They represent humanity at our best; our will to explore, our need to push boundaries, our excitement for expanding the human experience far beyond terrestrial shores. They also act as a means to understand the sheer scale of our solar system. And what better way to measure that scale than with a human life.

Ed Stone started working on the Voyager Program in 1972 as a project scientist. Now, at 82 years old, he’s still working on the Voyagers nearly half a century later as they continue to send back data from the frontier beyond our solar system. When we start measuring space missions in half-centuries, or missions that have lasted entire careers, it becomes clear how far we’ve come. Not only does NASA build really tough space robots that surpass expectations routinely, returning new discoveries and revelations about the universe that surrounds us, the Voyagers have become a monument to the essence of being human, something with which Stone would probably agree.

Although most of the instruments aboard the Voyagers are no longer functional, both missions are still returning data from the shores of the interstellar ocean and, on Nov. 5, mission controllers noticed that one of Voyager 2’s instruments, the Plasma Science Experiment (PSE), had detected a rapid change in its surrounding environment. Used to being immersed the comparatively warm and tenuous solar wind flowing past it, its plasma measurements detected a change. The spacecraft had passed into a region of space where the plasma was now denser and cooler. Three other particle experiments also detected a dramatic change; solar wind particle counts were down, but cosmic ray counts precipitously increased. Voyager 1’s PSE failed in 1980, so couldn’t measure this boundary when it entered interstellar space in 2012, so Voyager 2 is adding more detail about what we can expect happens when a spacecraft travels from the heliosphere, through the heliopause and into interstellar space.

[NASA/JPL-Caltech]

“There is still a lot to learn about the region of interstellar space immediately beyond the heliopause,” said Stone in a NASA statement.

The heliosphere can be imagined as a vast magnetized bubble that is generated by the Sun. This bubble is inflated by the solar wind, a persistent stream of solar particles that ebb and flow with the Sun’s 11-year cycle. When the Sun is at its most active, the bubble expands; at its least active, it contracts. This dynamic solar sphere of influence affects the flux of high-energy cosmic rays entering the inner solar system, but the physics at this enigmatic boundary is poorly understood. With the help of the Voyagers, however, we’re getting an in-situ feel for the plasma environment at the boundary of where the Sun’s magnetism hits the interstellar medium.

To achieve this, however, we had to rely on two spacecraft that were launched before I was born, in 1977. Voyager 2 is now 11 billion miles away (Voyager 1 is further away, at nearly 14 billion miles) and it took the probe 41 years just to reach our interstellar doorstep. Neither Voyagers have “left” the solar system, not by a long shot. The gravitational boundary of the solar system is thought to lie some 100,000 AU (astronomical units, where one AU is the average distance from the Earth to the Sun), the outermost limit to the Oort Cloud — a region surrounding the solar system that contains countless billions of icy objects, some of which become the long-period comets that intermittently careen through the inner solar system. Voyager 2 is barely 120 AU from Earth, so as you can see, it has a long way to go (probably another 30,000 years) before it really leaves the solar system — despite what the BBC tells us.

So, tonight, as we ponder our existence on this tiny pale blue dot, look up and think of the two space robot pioneers that are still returning valuable data despite being in deep space for over four decades. I hope their legacy lives on well beyond the life of their radioactive generators, and that the next interstellar spacecraft (no pressure, New Horizons) lives as long, if not longer, than the Voyagers.

Read more about today’s news in my article for HowStuffWorks.com.



Did a Solar Storm Detonate Dozens of Vietnam War Mines?

Some 25 underwater mines mysteriously exploded in the summer of 1972. A newly declassified report points its finger at a surprising culprit: the sun.

[NASA/SDO]

Something very strange happened on Aug. 4, 1972 in the waters near Vietnam. Dozens of undersea mines detonated for seemingly no reason. The matter was classified, as was a report trying to get to the bottom of what happened. Initial hypotheses focused on a malfunctioning self-destruct feature meant to prevent lost mines from posing an underwater hazard for decades after hostilities were over, but there was no corroborating evidence. Soviet subs might have accounted for one or two, but not systematic detonations across the whole minefield, not to mention their defensive countermeasures.

But one of the suggestions seemed to very neatly explain the observed phenomenon. The mines were magnetic, meaning that they reacted to the natural magnetism of metals in ships’ hulls and the changes in the strengths of their magnetic fields as those ships approached. It was an old, reliable technology and it would’ve taken a massive magnetic event to have set them off. And wouldn’t you know it, some of the most intense solar activity on record happened in that exact time frame, causing numerous power surges and telegraph outages across North America.

On the day Navy aircraft saw the mines go off, the sun erupted in what’s known as an X-class flare, a burst of energy more than 10,000 times more powerful than the high end of typical solar emissions. With the path to Earth cleared by supercharged solar winds, the resulting coronal mass ejection hit Earth in just 14.6 hours instead of the typical three days and caused massive magnetic and electrical disruptions in the atmosphere, quite possibly powerful enough to set off detectors on the underwater mines off the coast of Hon La Port as the plasma slammed into our planet.

So, case closed? Not exactly. We measure the intensity of the disruption in the Earth’s magnetic field caused by solar storms in negative nTs, or nano-Teslas. By itself, a nano-Tesla isn’t much. Your run of the mill fridge magnet is a million times stronger, although it’s only spread over tens of square centimeters, instead of millions of square kilometers like the fraction of a coronal mass ejection that hits Earth and lingers in the upper layers of the atmosphere. In 2003, a massive flare hit us with a magnetic disruption measuring almost -400 nT without melting anything down, although it did cause problems with air traffic.

By comparison, the ejection in 1972 measured a third of that at just -125 nT. Was it really strong enough to set off underwater mines? We’ll probably never know for sure, but it’s still entirely possible. Over the decades, we’ve learned much more about solar storms and what they can do, developed better shielding and early warning systems, more sophisticated equipment, and unwittingly created a shield of radio emissions to reroute charged particles from Earth. It’s quite plausible that older, less insulated technology was more sensitive to major solar storms and the trigger mechanisms for those mines were just one example.

[This article originally appeared on World of Weird Things]
